Novachips Announces Scalar-Series of Solid-State Drives – First 4TB/8TB SATA/NVMe SSDs in 2.5” Form Factor

Novachips Co., Ltd, an innovative producer of flash storage solutions, is announcing the Scalar-Series of solid-state drives (SSDs), representing the first 4TB SSD in a 2.5” x 7mm form factor, and the first 8TB SSD in a 2.5” x 15mm form factor. The Scalar-Series of SSDs are based on a SATA 3.1 (6Gb/s) interface, and deliver sequential read speeds of (up to) 540MB/s. Also being introduced is Novachips’ new Express-Series of SSDs, available as either a 2.5” x 15mm form factor with capacities up to 8TB, or as a Full-Height-Half-Length (FHHL) add-in card with capacities of up to 16TB. The Express-Series of SSDs is built on a PCIe Gen2.0 x 4 interface with NVMe protocol, and offer sequential read speeds of up to 1500MB/s.

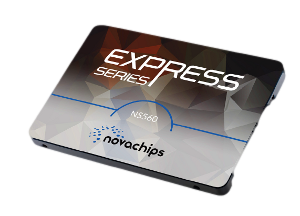

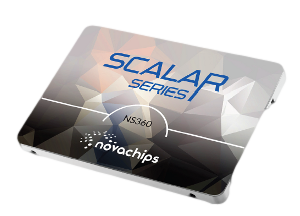

Novachips Scalar SSDNovachips Express SSD

Both the Scalar-Series and Express-Series of SSDs utilize a proprietary NVS3800 Novachips NAND controller based on 28nm process technology. Their innovative Hyperlink NAND (HLNAND) Flash uses the newest MLC/TLC/3D NAND flash combined with intelligent error correction code (ECC) and data randomization protocols to provide superior performance , superior data integrity, and high reliability and endurance to provide maximum scalability as well as lowered total cost of ownership (TCO).

Novachips Express PCIe SSDsBoth the Scalar-Series and Express-Series of SSDs feature Novachips’ own Hyperlink interface technology that utilizes a serial, point-to-point, daisy-chain ring topology that can connect up to 255 HLNAND devices on a single channel. This enables maintaining maximum channel speed of up to 800MT/s in HLNAND2 regardless of the number of devices connected to the channel. Hyperlink SSD (HLSSD) is a technology that is redefining flash storage solutions via capacity, performance, efficiency and form.

Novachips HLNAND both sidesNovachips’ Scalar-Series and Express-Series of SSDs’ key features include:

  • Industry-leading capacity, up to 8TB or 16TB using a single ASIC SSD controller in 2.5” and FHHL form factor, respectively
  • Enhanced Power Loss Protection (PLP) to maintain data integrity and prevent data loss in the event of an unanticipated power interruption
  • Full end-to-end data protection with advanced error correction routines and in-transit data protection
  • Hardware-based AES-256 encryption
  • Self-encrypting models compliant with TCG Opal 2.0 specification
  • Chip-level RAID data protection in addition to ECC and single die failure recovery
  • Power and thermal throttling with auto peak power control via monitoring of on-board temperature sensor
  • 2 (SFF-8639) standard connector on the Express-Series 2.5” versions
  • Superior data integrity and high reliability featuring 2-dimensional randomization and multi-level bad block management

Novachips HLNAND block diagramNovachip’s Scalar-Series and Express-Series SSDs are currently available to key OEM and ODM partners, and through channel partners. Novachips will be displaying and demonstrating both the Scalar-Series and Express-Series of SSDs at Flash Memory Summit this week in Santa Clara, CA. You can visit Novachips at booth #624 -626.

Novachips logo

4
Leave a Reply

avatar
1 Comment threads
3 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
3 Comment authors
H.J. Ohjt AJrenosablast Recent comment authors
  Subscribe
newest oldest most voted
Notify of
jt AJ
Guest
jt AJ

first in NVMe, maybe. but definitely not first in SATA. sandisk has 4TB first in SAS, foremay has 4/8TB both available in 2.5″ SATA a year and half ago.

renosablast
Guest
renosablast

Companies do tend to “split hairs” a bit when it comes to announcements of being the “first”. This is the first in 2.5″ x 7mm form factor. The ones you are referring to are 2.5″ x 15mm form factor.

jt AJ
Guest
jt AJ

isnt foremay 9.5mm? sandisk is also 9.5 i believe but im not that interested in sas so dont remember.

H.J. Oh
Guest
H.J. Oh

Foremay’s is the oem version of novachips, and is not available yet. Sandisk one is 15mm thick one.
