Marvell Readies Altaplus PCIe X4 SD Controller For Q4 – Computex 2014 Update

Our visit with Marvell this week at Computex went as expected and we got a bit of an update on their Altaplus M.2 PCIe X4 controller, previously designated as the Altaplus and numbered 88SS9293.  Timing right now for Marvell is great as Q4 is going to be a key point in time for M.2 X4 release.  LSI expects that the SF3700 will be available around that time which most likely means CES 2014 before we realistically see it in the wild, but there are a few other wildcards such as that we reported on earlier by JMicron, as well as one other we reported on at FMS last year by Phison.  An important point to consider is that we haven’t seen the JMicron or Phison controllers in use, and the LSI 3700 still needs to reduce heat to be utilized without the all to familiar heat sink we have seen in every public display.  This is a key benefit to Marvell.

Marvell 88SS9293 M.2 X4 Controller - 1

Up to this point, the only M.2 PCIe X4 controller that we have seen in use without the need for a heat sink, other than the now available Samsung XP941, is that of the Marvell Altaplus.  Marvell is very happy with its progress pin pointing Q4 as a pertinent time period, however contractual obligations would never allow them to speak for the manufacturers that would be in possession of such.  We might want to watch Micron/Crucial, Plextor and SanDisk.

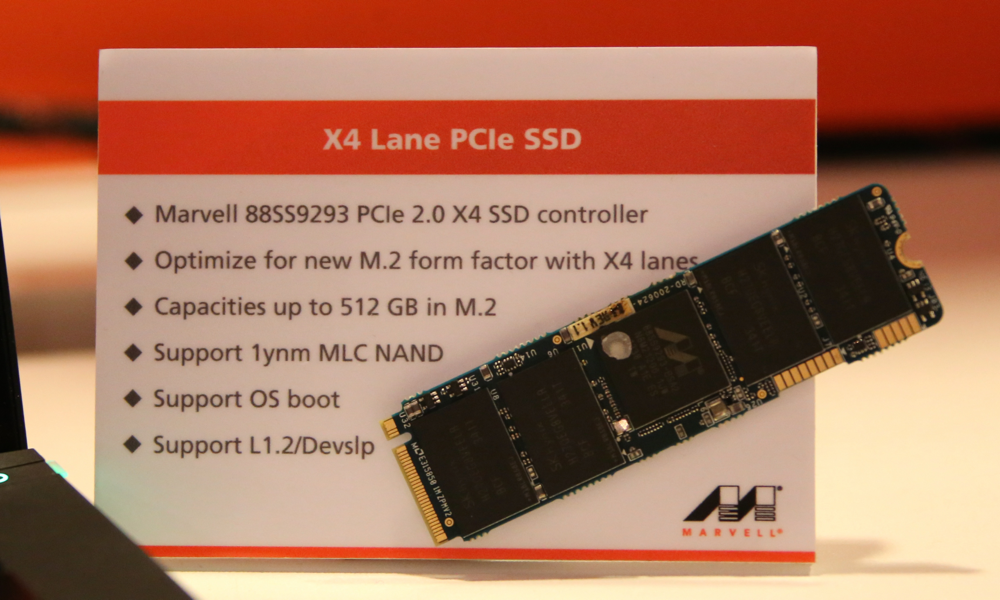

Marvell 88SS9293 M.2 X4 Controller - 5

Specifications here are very generic and we are aware that 1.4GB/s is an ideal performance point for this controller.  As well, a top capacity of 512GB is quoted but there is no doubt that we will be seeing same in 1TB capacities not long after release.  This SSD will be ideal for media professionals, especially those working with 4K files, and that 1TB capacity just might be a sweet spot.

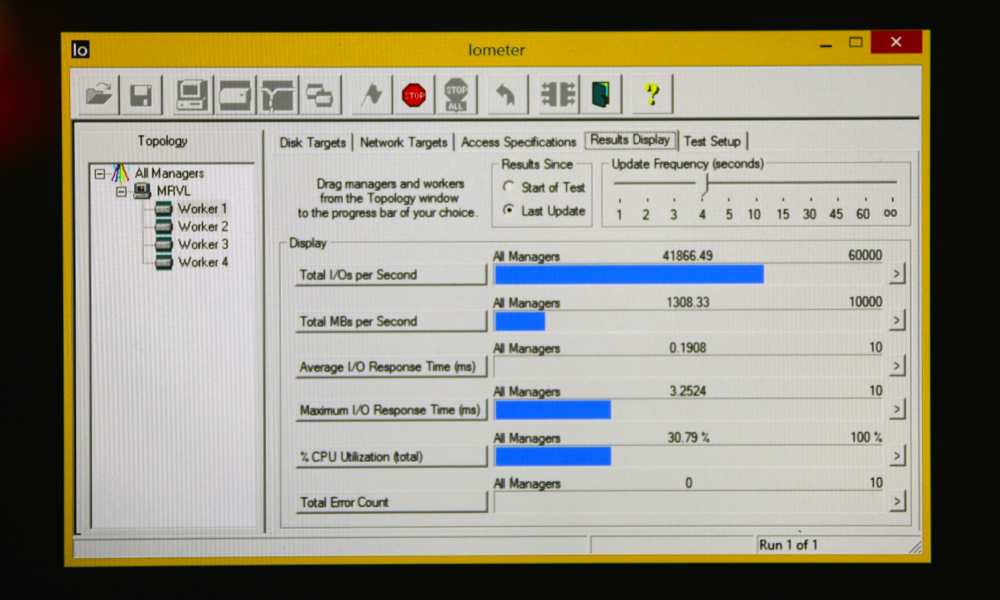

Marvell 88SS9293 M.2 X4 Controller - 2

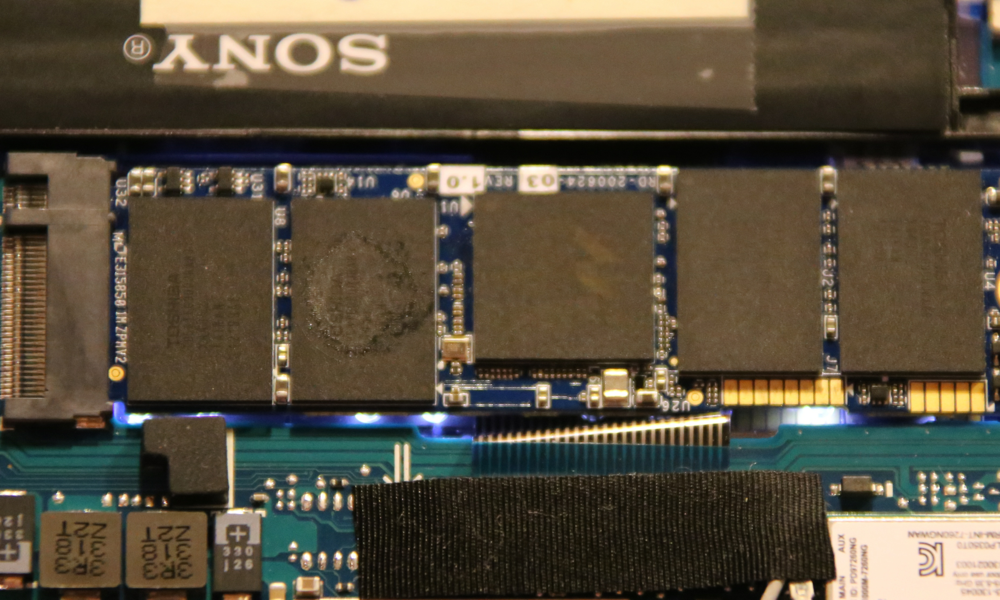

Display testing of the Altaplus at Computex resulted in 1.3GB/s performance and this is what it will perform at in the demonstrator Sony Vaio ultrabook on display.  We would hazard to guess this controller will even surpass the stated 1.4GB/s eventually.  This shot below displays a well used Altaplus in the Sony Vaio.

Marvell 88SS9293 M.2 X4 Controller - 6

If anything should be watched this year, it will be timing and the next release will be as important as the much sought after Samsung XP941.   We have covered that SSD in several reports and, after our first published report, availability stopped for 3rd party distributors for some time.  Only most recently were other reviewers able to acquire a sample and, something we hadn’t seen prior with Samsung is the fact that they have converted the sales direction of this drive to include retail.  Only a few weeks ago the XP941 became available from Samsung at Amazon as a retail item, an important step as buyers now would see a Samsung warranty included with that sale we think.

4
Leave a Reply

avatar
1 Comment threads
3 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
2 Comment authors
Les@TheSSDReviewVext Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Vext
Guest
Vext

Do you have any idea when we’ll see a 1TB xp941, or any other 1TB M.2 x4 PCIe ssd, in the wild?

Les@TheSSDReview
Guest

Not at this point and time. The only close iteration is the 1TB custom Apple SSD, based on the XP941.

Vext
Guest
Vext

What about the Adata SR1020NP?

Les@TheSSDReview
Guest

Not released and probably won’t be until Spring 2015
